| Parameter Item | Value |
| Frequency Range | 860-930 MHz |
| Output VSWR | ≤1.5 |
| Operating Temperature | -10 ~ +75℃ |
| Max Current | 3.9 A |
| Max Output Power | 10W, 20W, 30W, 40W, 50W, 100W |
| Operating Voltage | DC 24-28V |
| Temperature Protection | Cut off & leakage protection at 75℃ |

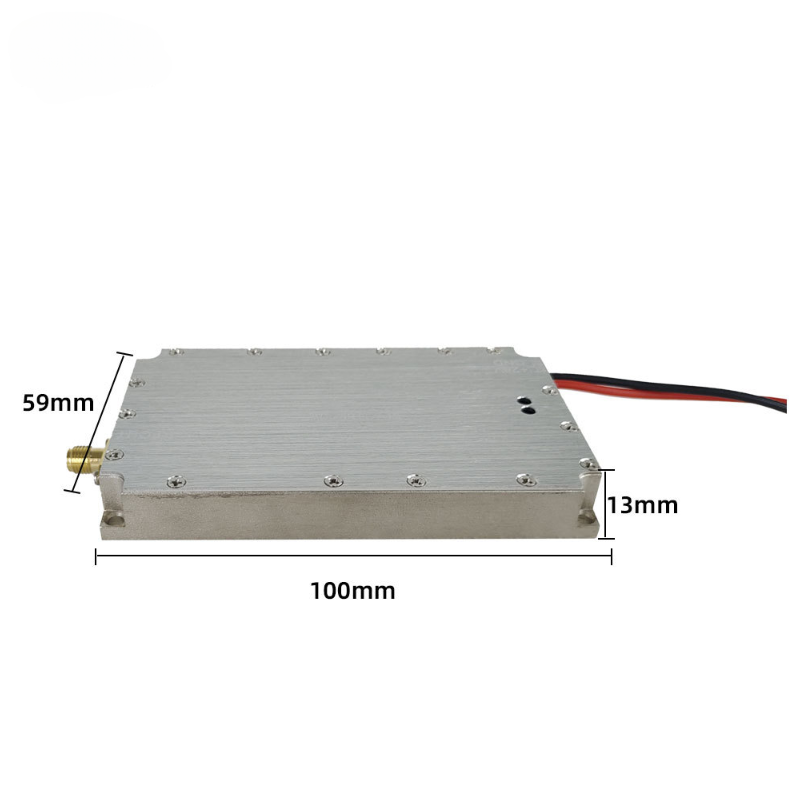

| Dimension | 100 × 59 × 13 mm |
| Output Connector | SMA Female / N Female |
| VSWR Protection | Supported |
| Weight | 0.26 kg |
