| Category | Model | Specification |
| Input Voltage | — | 12-28V, 6S battery is suggested |
| Output Voltage | — | 5V |
| Channels | — | 80CH |
| Power | Alpha 4 | 1W/2W/3W/4W Switchable |
| Power | Alpha 5 | 1W/2W/3W/5W Switchable |
| Power | Alpha 8 | 1W/3W/5W/8W Switchable |
| Power | Alpha 10 | 1W/3W/5W/7W/10W Switchable |
| Power Consumption | Alpha 4 | 12V/1.5A 28V/700mA |
| Power Consumption | Alpha 5 | 12V/1.7A 28V/800mA |
| Power Consumption | Alpha 8 | 12V/2.5A 28V/1A |
| Power Consumption | Alpha 10 | 12V/2.8A 28V/1.1A |

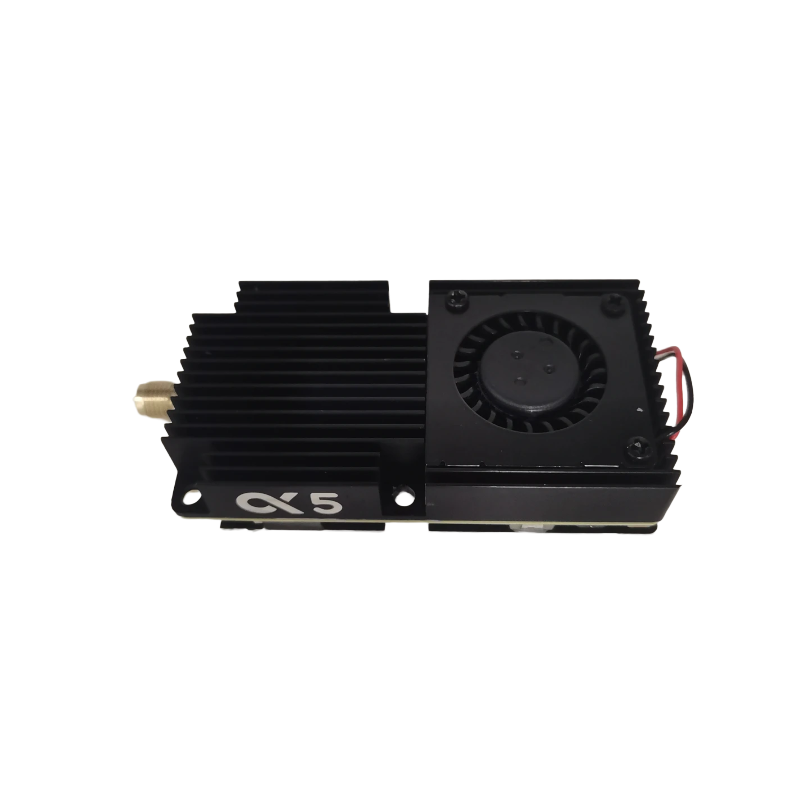

| Extra Feature | — | Smart Audio / Built-in cooling fan + heat sink |
| Mounting Hole | — | 30.5 × 30.5 mm |
| Antenna Connector | — | SMA |
| Cable Connector | — | JST 8pin (Dual 12-28V Input and Dual GND) |
| Weight | — | 48g |
| Size | — | 68 × 36 × 15 mm |
